What is pin header

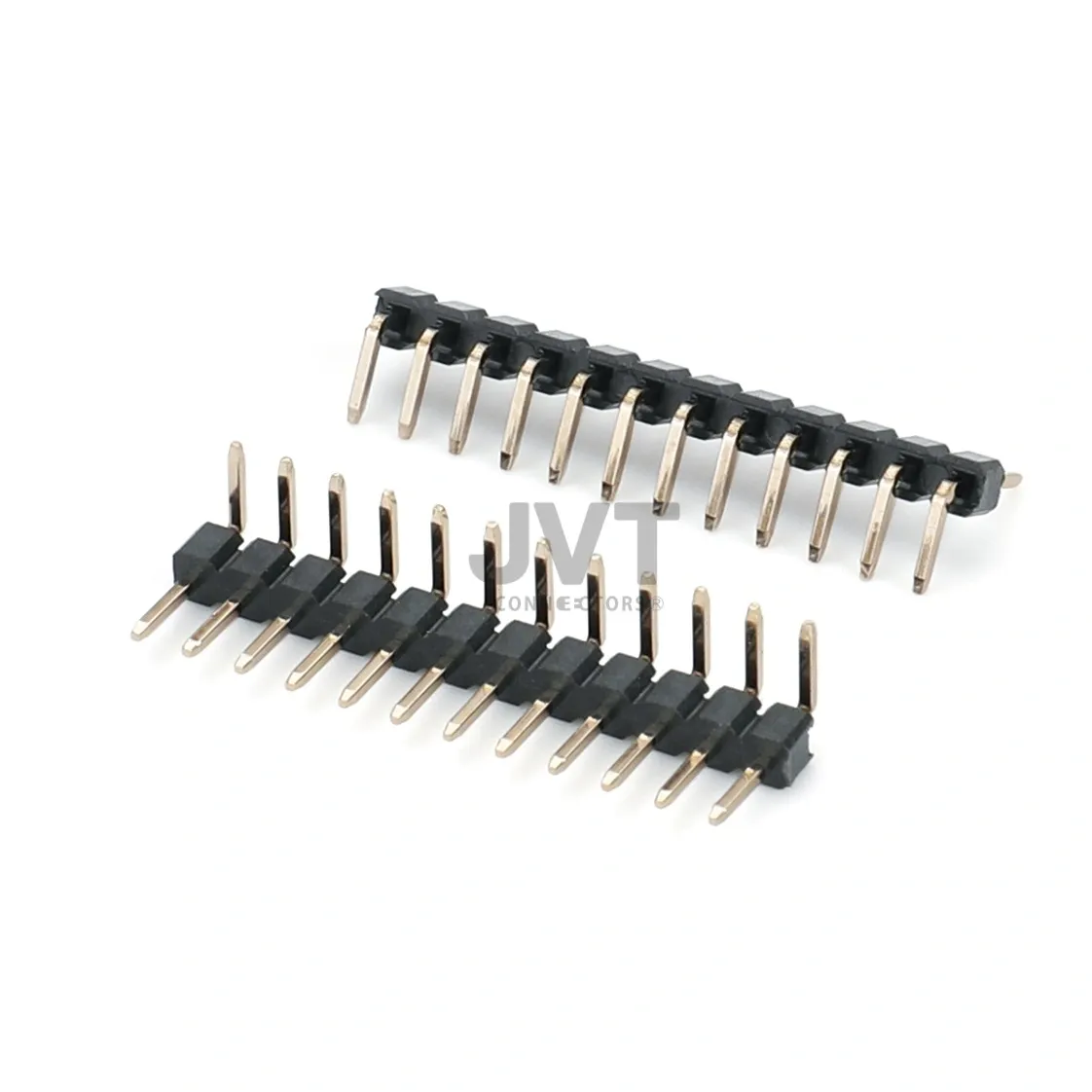

Standard pin headers may not always suit every project, especially in complex or space-constrained designs. For these cases, custom pin header solutions provide tailored features such as non-standard pitches, unique plating options, or special housing geometries. A custom pin header can be designed with bent pins, extra-long contacts, keyed shapes, or polarized connectors to meet specific mating and orientation requirements. OEM manufacturers often require custom pin headers to ensure tight fits within enclosures, accommodate special mounting angles, or achieve higher current ratings. Collaborating with experienced pin header suppliers allows designers to balance performance, cost, and manufacturability while meeting all application demands. With fast prototyping and small-batch production options available, it’s now easier than ever to obtain custom pin header assemblies optimized for performance and integration across diverse electronic products.

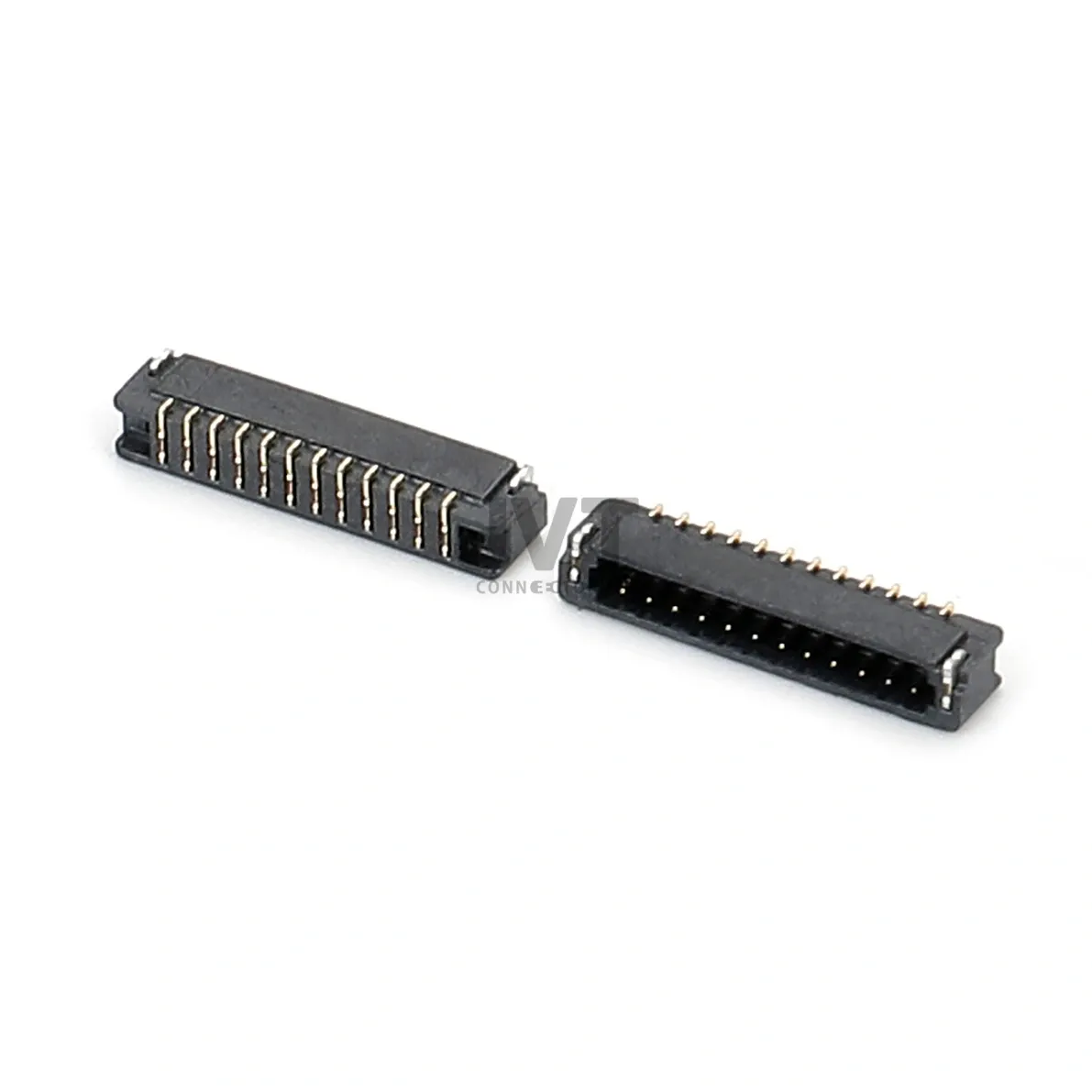

Choosing the right pin header not only affects product performance but also impacts manufacturing efficiency and overall cost. For example, selecting a through-hole pin header may increase assembly robustness but could slow down automated soldering compared to surface-mount options. On the other hand, SMT pin headers are more suitable for high-speed pick-and-place assembly lines. Factors such as number of pins, plating type, packaging method (tray, tube, or reel), and pin length should be considered when optimizing for production. Additionally, choosing pre-molded or pre-cut pin header strips can reduce assembly steps and errors. By selecting pin headers that align with both electrical requirements and manufacturing constraints, businesses can achieve cost-effective production while maintaining consistent quality.

In high-speed electronic applications, the quality and construction of the pin header can significantly influence signal integrity. Low-quality materials or improper plating may introduce noise, resistance, or cross-talk that degrade the circuit’s performance. High-quality pin headers often feature gold-plated contacts, which enhance conductivity and prevent oxidation, ensuring long-term reliable operation. The choice of pin header housing material also affects temperature resistance and mechanical durability, particularly in industrial or automotive environments. Signal-sensitive circuits such as USB, HDMI, or SPI interfaces require precisely manufactured pin headers with controlled impedance and minimal variation in contact resistance. As more devices adopt high-frequency digital signals, manufacturers are increasingly turning to precision-engineered pin headers to maintain performance standards. Choosing certified, high-reliability pin headers is essential when designing for critical systems like medical devices, aerospace electronics, or high-speed communication modules.

One of the most critical specifications in a pin header is its pitch—the center-to-center distance between adjacent pins. Common pitch sizes include 2.54mm, 2.00mm, 1.27mm, and 1.00mm, each suited for different applications. A larger pitch such as 2.54mm is often used in hobbyist or prototyping environments, where manual insertion and visibility are important. Smaller pitches allow for higher-density circuit designs, saving valuable PCB space and enabling miniaturization. However, reduced pitch sizes also demand more precise manufacturing to avoid solder bridging or signal interference. The pitch of a pin header must match that of the mating connector or PCB footprint to ensure proper connectivity. Therefore, selecting the appropriate pin header pitch is essential not only for mechanical compatibility but also for maintaining signal clarity, especially in analog or high-frequency circuits.
