What is pin header

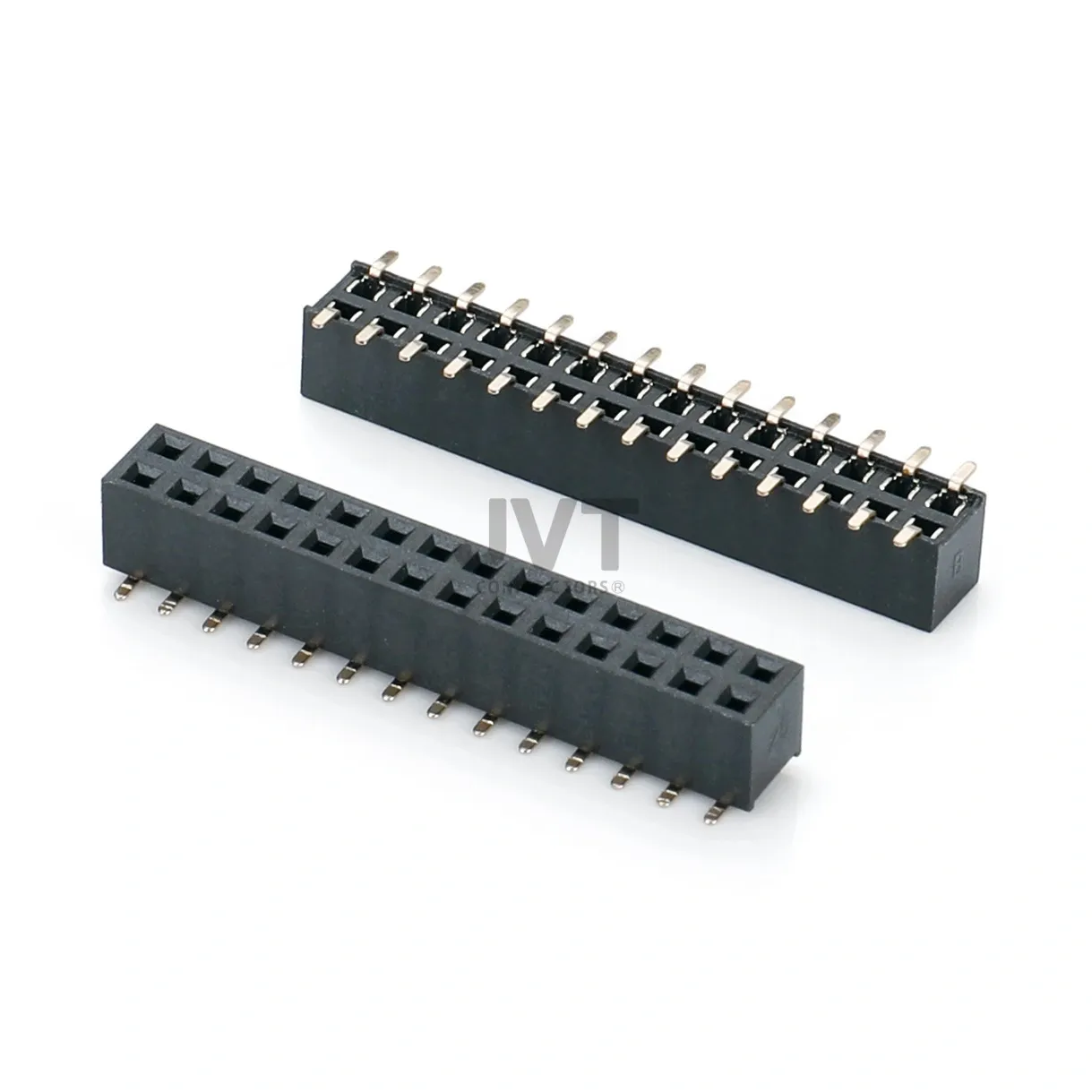

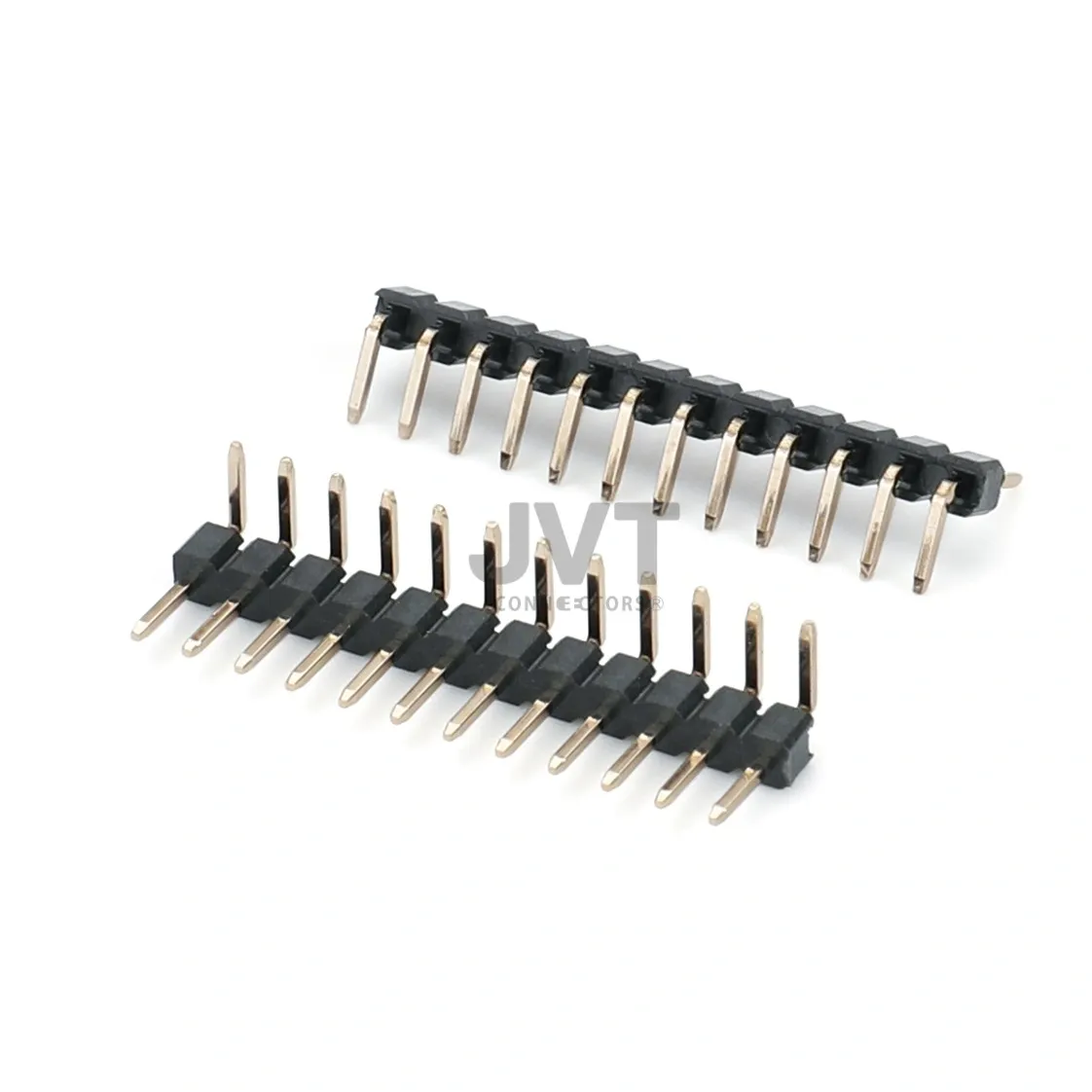

Pin header connectors are essential components used to establish secure and consistent board-to-board or board-to-cable connections in electronic circuits. Typically made of rows of pins aligned on a plastic base, pin headers are designed for easy insertion into mating connectors such as female headers or IDC sockets. Their simplicity, low cost, and adaptability make them widely used across consumer electronics, industrial devices, and embedded systems. A pin header can support multiple pitches (commonly 2.54mm), configurations (single, double, or triple row), and orientations (straight or right angle). Their versatility allows engineers to efficiently design PCBs that require modularity or easy access to test points. As a result, pin header solutions play a crucial role in the compact design of microcontroller boards, power supply modules, and communication interfaces.

In high-speed electronic applications, the quality and construction of the pin header can significantly influence signal integrity. Low-quality materials or improper plating may introduce noise, resistance, or cross-talk that degrade the circuit’s performance. High-quality pin headers often feature gold-plated contacts, which enhance conductivity and prevent oxidation, ensuring long-term reliable operation. The choice of pin header housing material also affects temperature resistance and mechanical durability, particularly in industrial or automotive environments. Signal-sensitive circuits such as USB, HDMI, or SPI interfaces require precisely manufactured pin headers with controlled impedance and minimal variation in contact resistance. As more devices adopt high-frequency digital signals, manufacturers are increasingly turning to precision-engineered pin headers to maintain performance standards. Choosing certified, high-reliability pin headers is essential when designing for critical systems like medical devices, aerospace electronics, or high-speed communication modules.

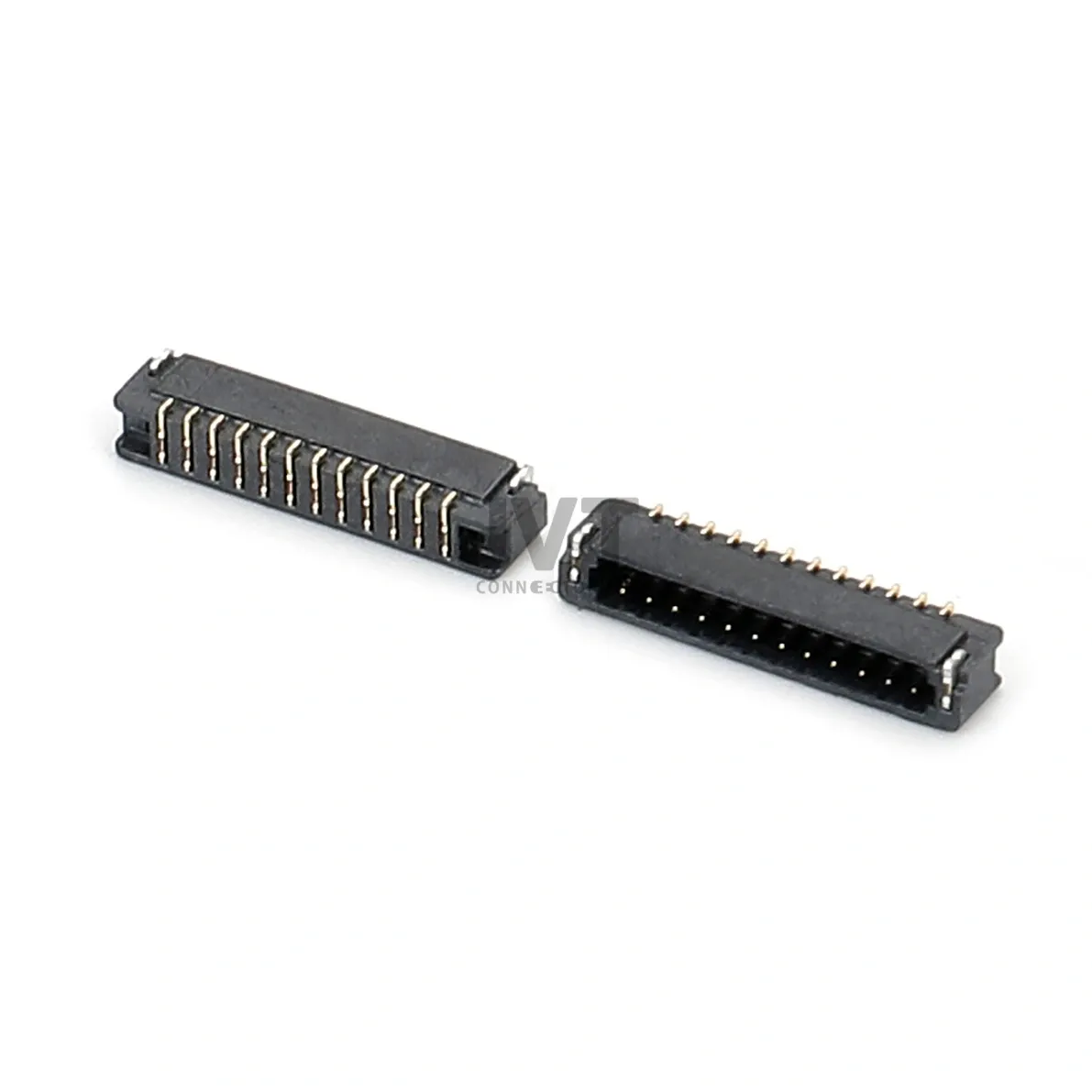

Choosing the right pin header not only affects product performance but also impacts manufacturing efficiency and overall cost. For example, selecting a through-hole pin header may increase assembly robustness but could slow down automated soldering compared to surface-mount options. On the other hand, SMT pin headers are more suitable for high-speed pick-and-place assembly lines. Factors such as number of pins, plating type, packaging method (tray, tube, or reel), and pin length should be considered when optimizing for production. Additionally, choosing pre-molded or pre-cut pin header strips can reduce assembly steps and errors. By selecting pin headers that align with both electrical requirements and manufacturing constraints, businesses can achieve cost-effective production while maintaining consistent quality.

For high-volume electronics manufacturing, the use of tape-and-reel packaging for pin headers significantly enhances automation and throughput. Tape-and-reel pin headers are precisely placed within carrier tapes, making them compatible with automated pick-and-place machines. This packaging format reduces manual handling, minimizes contamination risks, and increases placement accuracy on PCBs. SMT pin headers packaged in reels are especially valuable for compact, high-speed production lines such as those used for smartphones, routers, or wearables. Moreover, using tape-and-reel pin headers allows better inventory management and consistent quality during the soldering process. When designing a product for automated assembly, specifying tape-and-reel packaged pin headers ensures the process remains efficient, scalable, and repeatable without sacrificing component reliability.
