What is pin header

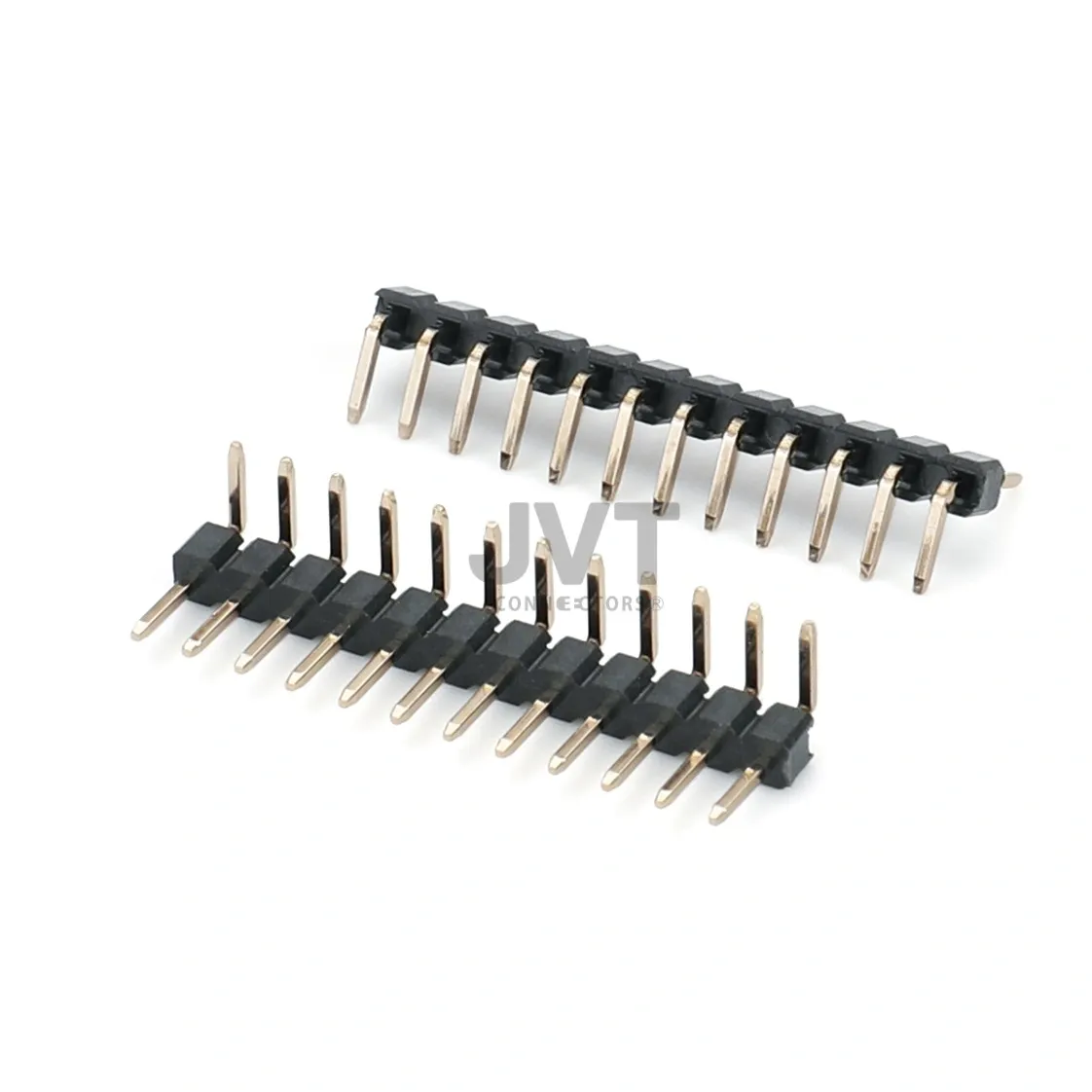

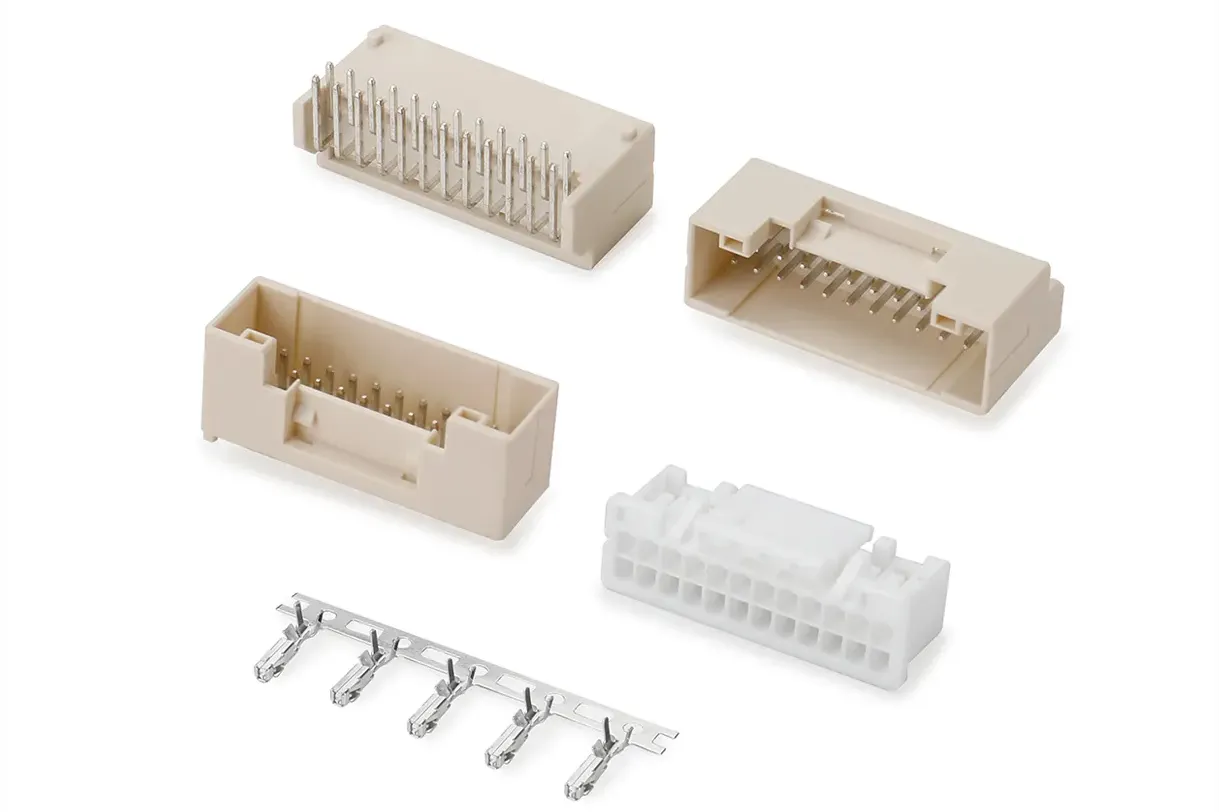

Right-angle pin header connectors are specifically designed to provide a horizontal mating interface, which helps save vertical space in compact or low-profile electronic devices. Instead of connecting cables or daughterboards vertically, right-angle pin headers allow connections to be made parallel to the board surface. This layout is ideal for applications like networking equipment, automotive modules, or handheld devices where internal space is limited. Right-angle pin headers are available in both single-row and multi-row versions, with options for SMT or through-hole mounting. Their structure also offers mechanical strength, as the lateral force from the cable or board is better distributed. Using right-angle pin header connectors is a smart design choice when space efficiency, accessibility, and signal routing flexibility are important.

One of the most critical specifications in a pin header is its pitch—the center-to-center distance between adjacent pins. Common pitch sizes include 2.54mm, 2.00mm, 1.27mm, and 1.00mm, each suited for different applications. A larger pitch such as 2.54mm is often used in hobbyist or prototyping environments, where manual insertion and visibility are important. Smaller pitches allow for higher-density circuit designs, saving valuable PCB space and enabling miniaturization. However, reduced pitch sizes also demand more precise manufacturing to avoid solder bridging or signal interference. The pitch of a pin header must match that of the mating connector or PCB footprint to ensure proper connectivity. Therefore, selecting the appropriate pin header pitch is essential not only for mechanical compatibility but also for maintaining signal clarity, especially in analog or high-frequency circuits.

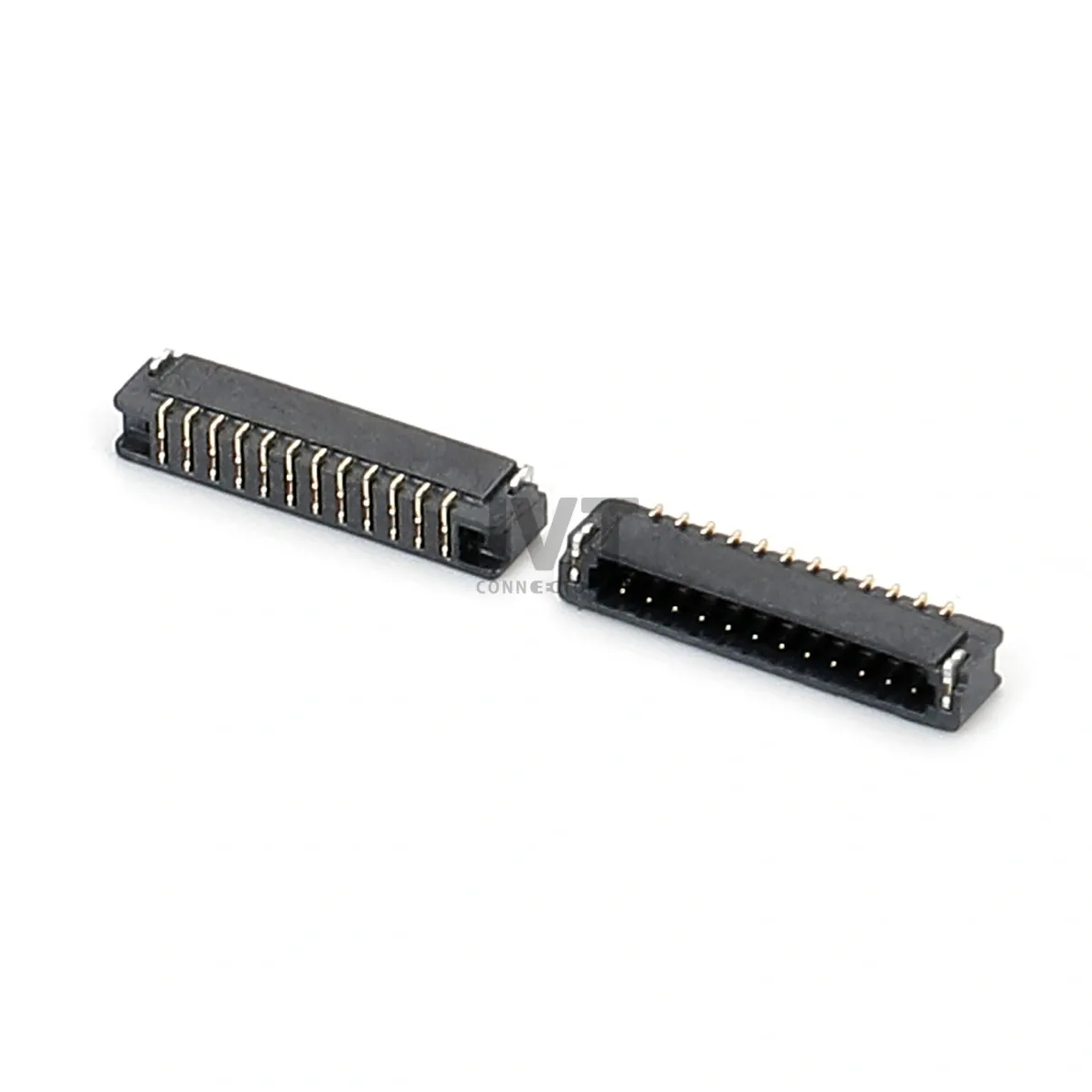

Choosing the right pin header not only affects product performance but also impacts manufacturing efficiency and overall cost. For example, selecting a through-hole pin header may increase assembly robustness but could slow down automated soldering compared to surface-mount options. On the other hand, SMT pin headers are more suitable for high-speed pick-and-place assembly lines. Factors such as number of pins, plating type, packaging method (tray, tube, or reel), and pin length should be considered when optimizing for production. Additionally, choosing pre-molded or pre-cut pin header strips can reduce assembly steps and errors. By selecting pin headers that align with both electrical requirements and manufacturing constraints, businesses can achieve cost-effective production while maintaining consistent quality.

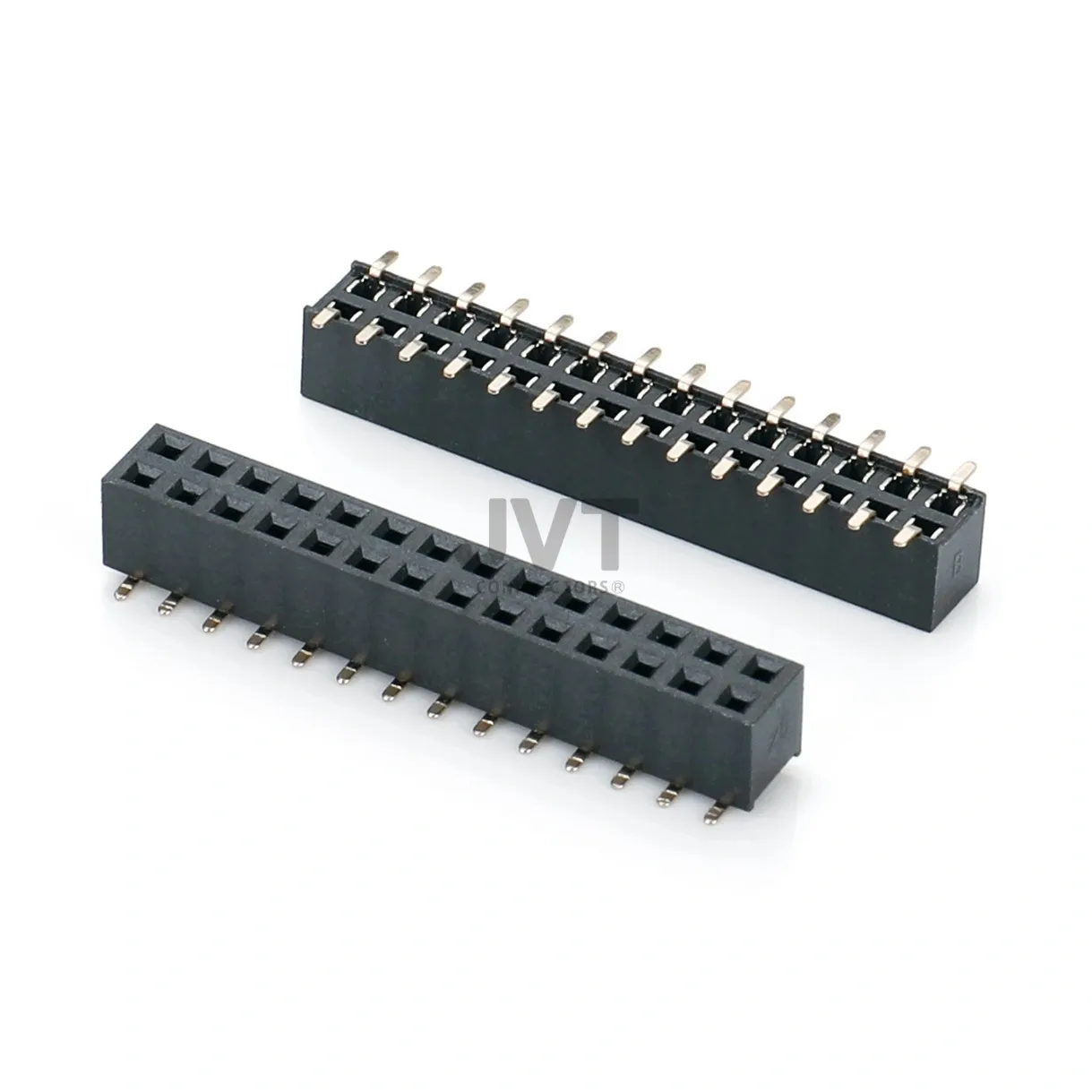

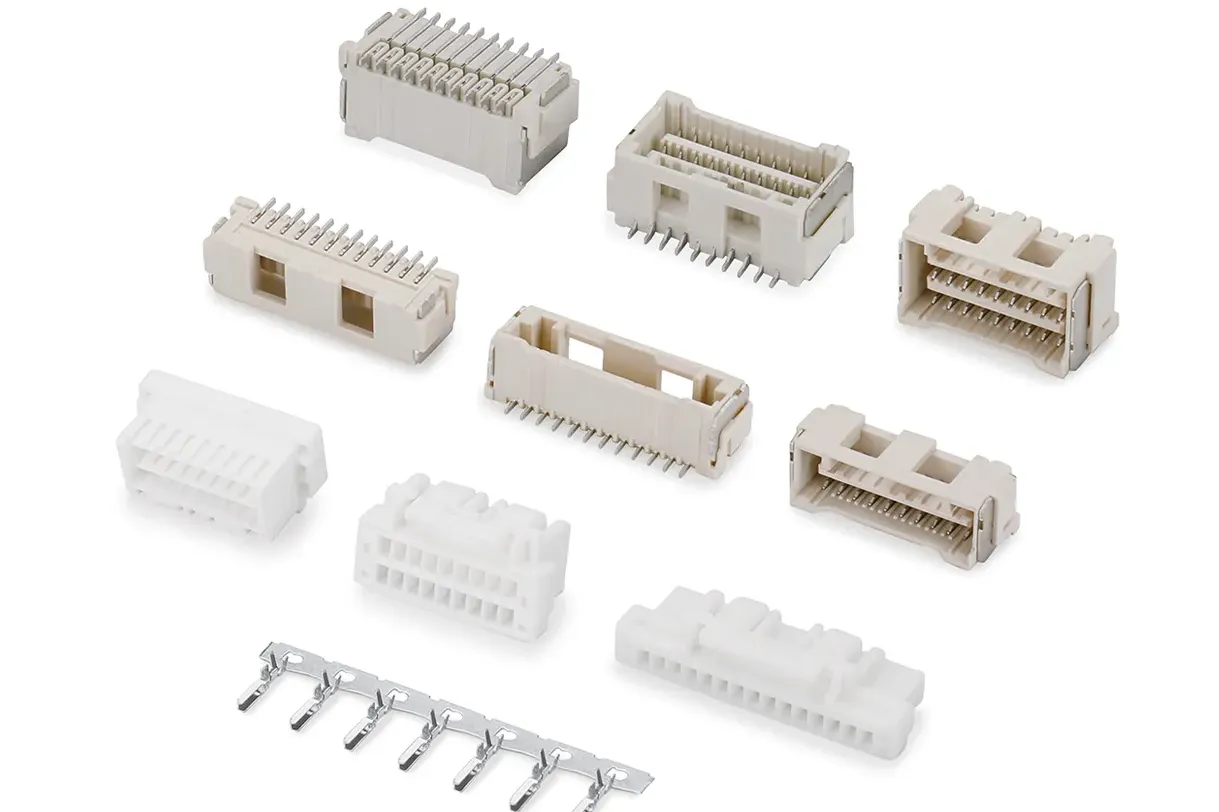

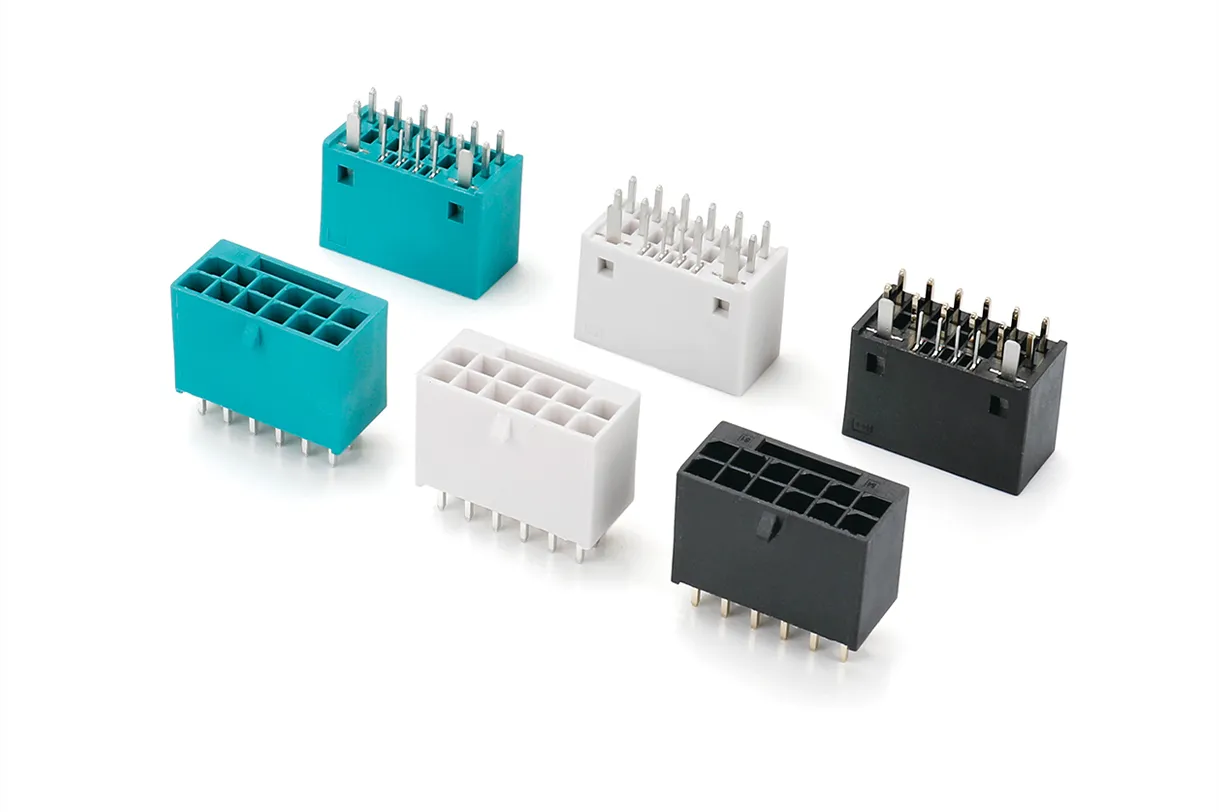

Pin header connectors are essential components used to establish secure and consistent board-to-board or board-to-cable connections in electronic circuits. Typically made of rows of pins aligned on a plastic base, pin headers are designed for easy insertion into mating connectors such as female headers or IDC sockets. Their simplicity, low cost, and adaptability make them widely used across consumer electronics, industrial devices, and embedded systems. A pin header can support multiple pitches (commonly 2.54mm), configurations (single, double, or triple row), and orientations (straight or right angle). Their versatility allows engineers to efficiently design PCBs that require modularity or easy access to test points. As a result, pin header solutions play a crucial role in the compact design of microcontroller boards, power supply modules, and communication interfaces.
